Hydrothermal carbonization

Hydrothermal carbonization (HTC) is a process similar to peat or coal formation. However, while the natural process takes place on the time scale of some hundred (peat) to millions (black coal) of years, and hence cannot be considered in material or bio-energy exploitation routes, the time scale of HTC process is that from hours to day (s). In the process, sugars and carbohydrates (also polysaccharides) are transformed into black soil, peat, brown coal or other carbonaceous materials.

Carbohydrates, important constituents of both plants and animals, are polyhydroxy aldehydes or ketones or their derivatives. Compounds classified as carbohydrates range from those consisting of a few carbon atoms to gigantic polymeric molecules. Carbohydrates that cannot be broken down into simpler units by hydrolysis reactions are known as monosaccharides. Examples of monosaccharides are glucose and fructose (both C6H12O6). In the HTC process, carbohydrates in a slightly acidic, aqueous solution are mildly heated (180-205°C) in closed recipients, forming condensed, coal-like structures. A schematic reaction equation is given in Equation 1. Depending on the extent of the reaction, four to five water units per carbohydrate molecule are eliminated in the final product.

[C₆H₁₂O₆]_n → n [C₆H₂O + 5 H₂O] (1)

carbohydrate → coal + water

The elimination of water in presence of water seems counterintuitive, but the reaction is both exothermic in character as well as strongly supported by entropy, due to increase of numbers of molecules and degrees of freedom.

For complex biomass, the chemical decomposition cascade of GTC is more complex than for pure glucose. Model examination with glucose and GC-MS examinations of the intermediary states of biomass indicate that main reaction channel of HTC is a very quick partial dehydration of the carbohydrate to hydroxymethylfurfural. The hydroxymethylfurfural subsequently undergoes cycloaddition and polymerization reactions, essentially resulting in structures rich in carbonyl, aliphatic and aromatic hydroxy groups. As mentioned above, four to five water units per saccharide unit are eliminated in the process, depending on the extent of reaction.

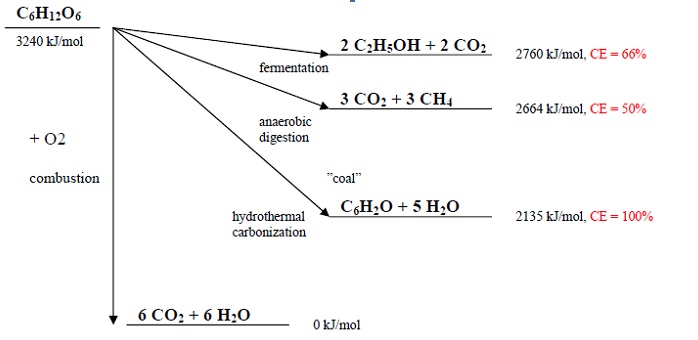

Once activated, the HTC process is a spontaneous, exothermic process. Thereupon of the high thermodynamic stability of water, it liberates about a third of combustion energy stored in carbohydrate. The carbon efficiency (CE) of HTC is close 100 % for pure dehydration, i.e. practically all of the starting carbon stays bound in the final carbonaceous material. For this value, temperatures below 200°C and pH value between 5-7, are mandatory. The CEs of fermentation and anaerobic digestion are 66 % and 50 % respectively.

• HTC is a bio-remediation process that converts wastes into solids, renewable fuels and specially chemicals
• HTC will help to solve the global problems of waste disposal and environmental pollution

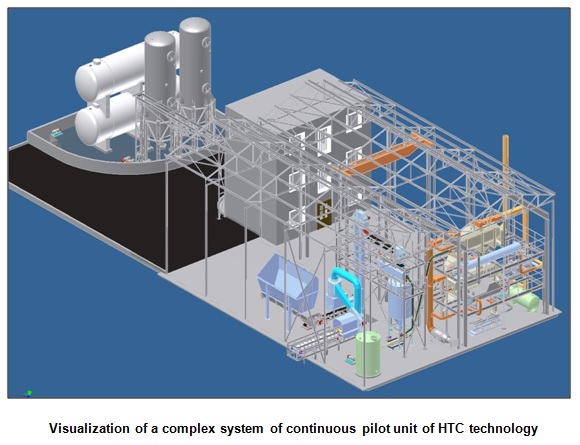

• HTC is a continuous flow-through process in a controlled environment using water, temperature, pressure and time, with no critical operating parameters

How it works?

• HTC's natural geothermal process, whereby organic material is converted into fossil fuel under conditions of extreme heat and pressure over millions of years
• HTC mimics the earth’s system using pipes and by controlling temperature and pressure to reduce the bio-remediation process from millions of years to mere hours
• HTC breaks down organic polymers (chains of small molecules) into their smallest units, and reforms them into new combinations to produce clean renewable fuels

Energy efficiency

• HTC is over 80% energy efficient
• HTC has very low heat energy requirements, due to short residence times of the material in process and to holding of water under pressure

Environmental efficiency

• HTC uses recycled water
• HTC uses steam naturally generate by feedstock, thereby recapturing the expended energy
• HTC generates its own energy.
• HTC produces no secondary hazardous waste stream
